Tag Cloud

This post is one of a series of articles adapted from my university dissertation on data visualisation — see the rest of the series.

Tag clouds are a great way of dynamically visualising the author-defined keyword content of a blog or news feed. I created a system which would store tags linked to blog posts and display them at different sizes according to the frequency of their appearance in the blog.

First of all I created the database tables. One to hold the list of all tags (new ones would be added to this):

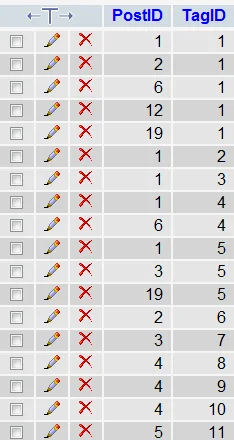

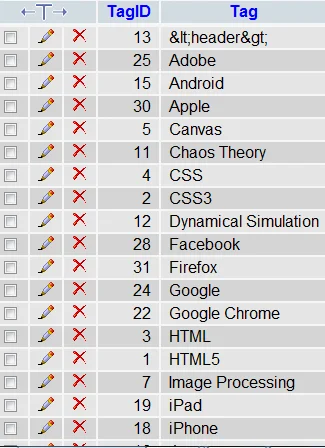

Database tables 'Taglist' (left) and 'Tags' (right)

The PHP script needed to scan the list of tags used and count how many times each one had been used, and render some HTML giving each tag in a size proportionate to the number of posts that have been tagged with it.

<?php
  include ("../globals.php"); // connect to database
  $count = mysql_query("
  SELECT TagID
  FROM Taglist
  ORDER BY TagID DESC
  LIMIT 1
  ") or die('Error: ' . mysql_error());
  $num = mysql_fetch_assoc($count);
  $num = $num['TagID'];

  for ($i=1; $i<=$num; $i++)
  {
    $tagcount = mysql_query("
    SELECT count(TagID) as count
    FROM Tags
    WHERE TagID = $i
    ") or die('Error: ' . mysql_error());
    $tag = mysql_fetch_assoc($tagcount);
    $tagsarray[$i]['Count'] = $tag['count'];

    $tagname = mysql_query("
    SELECT *
    FROM Taglist
    WHERE TagID = $i
    ") or die('Error: ' . mysql_error());
    $tag = mysql_fetch_assoc($tagname);
    $tagsarray[$i]['Tag'] = $tag['Tag'];
    $tagsarray[$i]['TagID'] = $tag['TagID'];
  }

  $max = 5;
  $min = 1;
  foreach ($tagsarray as $tag)
  {
    $size = round(10 + 30 * ($tag['Count'] - $min) / ($max - $min));
    echo "<a href='tags.php?tag=" . $tag['TagID'] . "'><span style='font-size:" . $size . "px;'>" . $tag['Tag'] . "</span></a> \n";
  }
?>

This rendered the following HTML:

<a href='tags.php?tag=1'><span style='font-size:40px;'>HTML5</span></a>
<a href='tags.php?tag=2'><span style='font-size:10px;'>CSS3</span></a>
<a href='tags.php?tag=3'><span style='font-size:10px;'>HTML</span></a>
<a href='tags.php?tag=4'><span style='font-size:18px;'>CSS</span></a>
<a href='tags.php?tag=5'><span style='font-size:25px;'>Canvas</span></a>
<a href='tags.php?tag=6'><span style='font-size:10px;'>JavaScript</span></a>
<a href='tags.php?tag=7'><span style='font-size:10px;'>Image Processing</span></a>
<a href='tags.php?tag=8'><span style='font-size:10px;'>MATLAB</span></a>

[abridged]

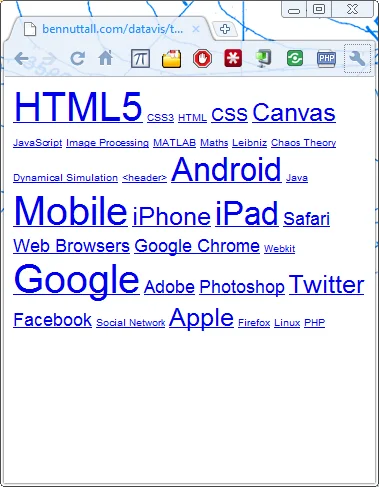

Which the browser rendered as:

Rendered tags sized according to number of tags
