Your Facebook Friends: A Stereotype
This post is one of a series of articles adapted from my university dissertation on data visualisation — see the rest of the series.
I navigated to the list of my Facebook friends (facebook.com/friends.php) and removed the default filtering (usually shows recently active friends) so that the list would be unbiased. I then opened a couple of friends' profiles (in new tabs in the background) from each page — they were organised alphabetically — selecting the profiles at random. 25 of my friends' profiles. I then inspected each of these profiles and made a tally chart of certain attributes (opinion-based) to sort the full set of the sample of 25 into sub groups based on their level of activity on Facebook, so that each friend fit into one of the following four sub sets:
{Posts constantly, Posts regularly, Posts infrequently, Hardly ever posts}
This based on personal status updates and links posted, not on the activity they "receive" (from other people), where the middle two groups are a level that I think is acceptable, the first is somewhat overwhelming/irritating and the last is merely that person not being active (not annoying but not good for the social network connection we share if they don't contribute).
I then added another two attributes, which could be applied to anyone in any subset (or not):
{Appears to be a drunken student, Appears to be obsessed with self-photography}
These attributes were based on my initial opinion when viewing the page (did I see immediate evidence of student-like drink-related statuses or drunk photos? Did I see a great deal of self-photography and a large number of personally-uploaded or tagged photos?) — generally not of my opinion of the person in question. I also added a gender field and grouped the results accordingly.
I began to write an HTML form into which I could input these results, intending on getting a PHP script to process the data. Since the form would consist of 25 repeated sets of fields, I got PHP to generate it:
<?php
$sample = 25;
$h = round($sample/2);
echo "<div style='width:800px;margin:0 auto;font-family:helvetica,tahoma,arial,sans-serif;font-size:11px;'>\n";
echo "<h1>Your Facebook Friends</h1>\n\n";
echo "<form method='post' action='yourfriends2.php'>\n";
for ($i=1; $i<=$sample; $i++)
{
if ($i == 1)
{
echo "<div style='float:left;'>";
}
elseif ($i == $h+1)
{
echo "</div>\n\n<div style='float:left;margin-left:10px;'>";
}
echo "<h2>Friend $i:</h2>\n";
echo "<b>Sex:</b> <input type='radio' name='sex[$i]' value='m' />Male <input type='radio' name='sex[$i]' value='f' />Female<br />\n";
echo "<b>They post:</b> <input type='radio' name='post[$i]' value='3' />Constantly <input type='radio' name='post[$i]' value='2' />Regularly <input type='radio' name='post[$i]' value='1' />Infrequently <input type='radio' name='post[$i]' value='0' />Hardly ever<br />\n";
echo "<b>They appear to be a:</b> <input type='checkbox' name='drunk[$i]' value='1' />Drunken Student <input type='checkbox' name='photo[$i]' value='1' />A Photo Obsessive<br />\n\n";
}
echo "</div>\n<br style='clear:both;' />\n";
echo "<input type='submit' value='Submit' style='float:right;' />\n";
echo "<br />\n</form>";
echo "</div>";
?>

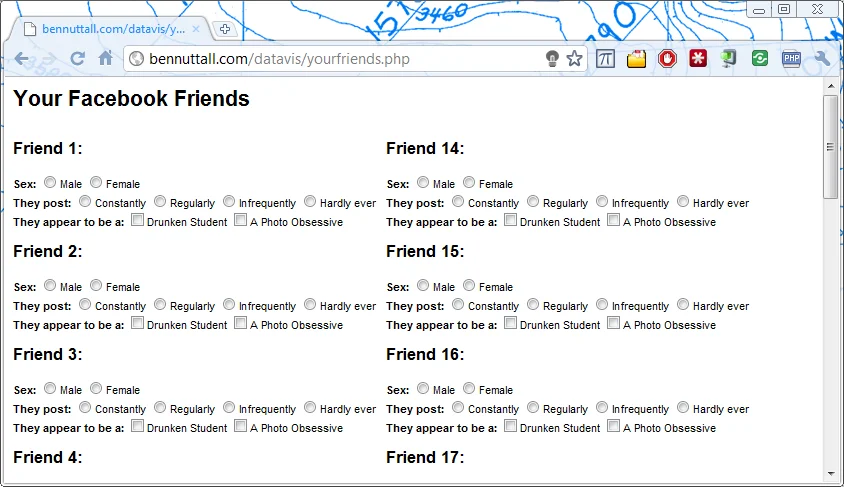

Which, when served, rendered the following HTML:
<div style='width:800px;margin:0 auto;font-family:helvetica,tahoma,arial,sans-serif;font-size:11px;'>
<h1>Your Facebook Friends</h1>
<form method='post' action='yourfriends2.php'>
<div style='float:left;'>
<h2>Friend 1:</h2>
<b>Sex:</b> <input type='radio' name='sex[1]' value='m' />Male <input type='radio' name='sex[1]' value='f' />Female<br />
<b>They post:</b> <input type='radio' name='post[1]' value='3' />Constantly <input type='radio' name='post[1]' value='2' />Regularly <input type='radio' name='post[1]' value='1' />Infrequently <input type='radio' name='post[1]' value='0' />Hardly ever<br />
<b>They appear to be a:</b> <input type='checkbox' name='drunk[1]' value='1' />Drunken Student <input type='checkbox' name='photo[1]' value='1' />A Photo Obsessive<br />
<h2>Friend 2:</h2>
<b>Sex:</b> <input type='radio' name='sex[2]' value='m' />Male <input type='radio' name='sex[2]' value='f' />Female<br />
<b>They post:</b> <input type='radio' name='post[2]' value='3' />Constantly <input type='radio' name='post[2]' value='2' />Regularly <input type='radio' name='post[2]' value='1' />Infrequently <input type='radio' name='post[2]' value='0' />Hardly ever<br />
<b>They appear to be a:</b> <input type='checkbox' name='drunk[2]' value='1' />Drunken Student <input type='checkbox' name='photo[2]' value='1' />A Photo Obsessive<br />
<h2>Friend 3:</h2>
<b>Sex:</b> <input type='radio' name='sex[3]' value='m' />Male <input type='radio' name='sex[3]' value='f' />Female<br />
<b>They post:</b> <input type='radio' name='post[3]' value='3' />Constantly <input type='radio' name='post[3]' value='2' />Regularly <input type='radio' name='post[3]' value='1' />Infrequently <input type='radio' name='post[3]' value='0' />Hardly ever<br />
<b>They appear to be a:</b> <input type='checkbox' name='drunk[3]' value='1' />Drunken Student <input type='checkbox' name='photo[3]' value='1' />A Photo Obsessive<br />
[FIELDS FOR FRIENDS 4 TO 24 NOT SHOWN]
</div>
<br style='clear:both;' />
<input type='submit' value='Submit' style='float:right;' />
<br />
</form>
</div>
I thought about ways to represent the processed information. I thought it would be sensible to scale this sample of 25 up to 100 (so things could be referred to in percentages). I then decided to use graphics representing each of these attributes (some with clearly overlapping traits). I started with the simple male/female symbols:
I decided to let colour represent the original groups (by activity level):
Black = Low activity, Blue = Low-Medium activity, Orange = High-Medium activity, Red = High activity
So my figures were then:
Then I added icons to represent drink and photographs:
So now there were a total of 32 images representing different sets of people (2 genders, 4 colours, with either, neither or both of 2 optional items). Once I was pleased with the images, I continued writing the PHP script which processed the HTML form.
The pseudocode for the processing script:
Retrieve all values posted from the form
For each friend inputted, generate an appropriate image
Count number of instances of each attribute
Display images in a 20x5 grid
Display visualisation legend
Show statistics in percentages
The code itself:
<?php
$sample = 25; // use a factor of 100
$d = 100/$sample;
$countd = 0;
$countp = 0;
$countm = 0;
$countf = 0;
$countbla = 0;
$countblu = 0;
$countora = 0;
$countred = 0;
$imgs = array();
foreach ($_POST as $key => $var) // Convert all $_POST['var'] to $var
{
$$key = $var;
}
for ($i=1; $i<=$sample; $i++) // Process each friend to generate appropriate image
{
$img = '';
if ($drunk[$i]) // if drunk
{
$img .= 'drunk-';
$countd++;
}
if ($photo[$i]) // if photo
{
$img .= 'camera-';
$countp++;
}
$sex[$i] == 'm' ? $img .= 'male-' : $img .= 'female-'; // shorthand for if A else B
$sex[$i] == 'm' ? $countm++ : $countf++;
switch ($post[$i]) // one of these options only
{
case 0:
$img .= 'black';
$countbla++;
break;
case 1:
$img .= 'blue';
$countblu++;
break;
case 2:
$img .= 'orange';
$countora++;
break;
case 3:
$img .= 'red';
$countred++;
break;
}
$img .= '.png';
$imgs[] = $img;
}
echo "<div style='width:1000px;margin:0 auto;text-align:center;font-family:helvetica,tahoma,arial,sans-serif;'>\n";
echo "<h1>What 100 of your Facebook friends looks like:</h1>\n\n";
$images = array();
for ($i=1; $i<=$d; $i++) // Multiply all occurances to make total to 100
{
foreach($imgs as $img)
{
$images[] = $img;
}
}
// Generate HTML image tags for each icon
$count = 0;
foreach($images as $img)
{
$count++;
echo "<img src='facebook/$img' width='40' />\n";
if ($count % 20 == 0) // After every 20 icons, send to a new line
{
echo "<br />";
}
}
// Multiply all counts by the factor (to provide statistics in percentage form)
$countd *= $d;
$countp *= $d;
$countm *= $d;
$countf *= $d;
$countbla *= $d;
$countblu *= $d;
$countora *= $d;
$countred *= $d;
$countmid = $countblu + $countora; // Middle two sets grouped together
// Render HTML for output
echo "<div style='text-align:right;'>from a sample of $sample</div>\n";
echo "<div style='float:left;width:170px;text-align:left;font-size:10px;'>\n";
echo "<h2>Legend:</h2>\n";
echo "Not enough => Too much<br />\n";
echo "<img src='facebook/black.png' /> <img src='facebook/blue.png' /> <img src='facebook/orange.png' /> <img src='facebook/red.png' /><br />\n";
echo "<div style='text-align:center;'>Interaction</div><br />\n";
echo "</div>\n";
echo "<div style='float:left;width:90px;text-align:left;font-size:10px;margin:18px 0 0 10px;'>\n";
echo "<img src='facebook/male-black.png' width='40' /> <img src='facebook/female-black.png' width='40' /><br />\n";
echo "<div> Male Female</div><br />\n";
echo "</div>\n";
echo "<div style='float:left;width:120px;text-align:center;font-size:10px;margin:30px 0 0 10px;'>\n";
echo "<div>Left Right</div>\n";
echo "<img src='facebook/camera.png' /> <img src='facebook/drink.png' /><br />\n";
echo "<div> Photos Drunk</div><br />\n";
echo "</div>\n\n";
echo "<div style='clear:both;'>\n";
echo "$countd% of your friends are drunken students<br />\n";
echo "$countp% of your friends are photo obsessive<br />\n";
echo "$countm% of your friends are male<br />\n";
echo "$countf% of your friends are female<br />\n";
echo "$countbla% of your friends don't interact enough<br />\n";
echo "$countred% of your friends use facebook too much<br />\n";
echo "$countmid% of your friends use facebook a reasonable amount<br />\n";
echo "</div>\n\n";
echo "</div>\n";
?>

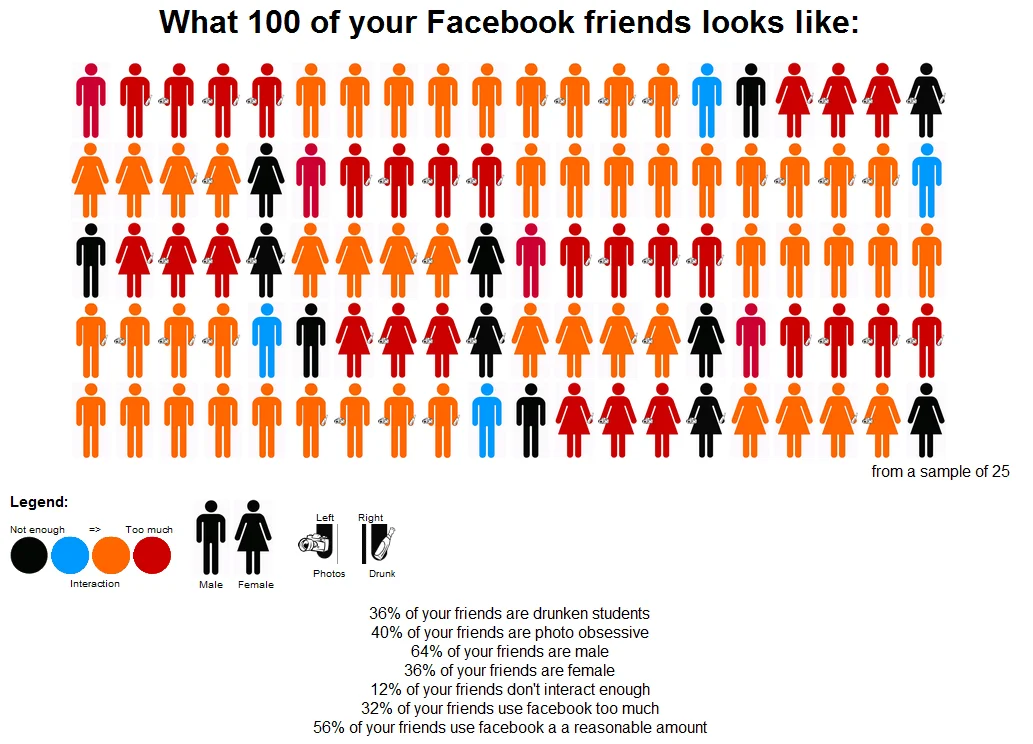

I then entered the data I had collected earlier, which yielded the following visualisation:
